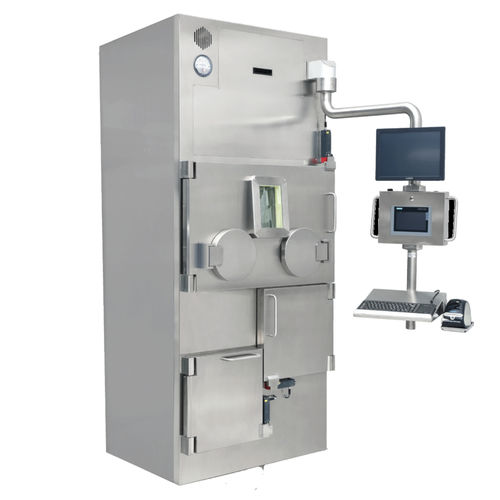

Dispensing shielded cell Gallia 50

synthesispolycarbonateUV

GALLIA 50 hot cell is specifically designed to accomplish the latest GMP guidelines for the complete 68Ga preparation cycle: Generator elution Synthesis or cold kit processing Dispensing Waste management KEY FEATURES Generator area for max n. 3 68Ga generators (n. 2 if the optional Waste Chamber is required) HMI: operator software interface for handling, system control, data saving and display Laminar air flow and temperature check sensor Particle counter connection predisposition Dose calibrator shielded area Main double door: Shielded Door for radioprotection and Polycarbonate Door for air-tight and gloves mounting. The 2 doors are independent and open separately Multi diameter sealed pass-through system for cables (Roxtec) N. 1 GMP Class B pre-chamber for the introduction and extraction of cold kits, cassettes and syringes Arm-tray to support laptop, and/or dose calibrator control unit and/or MorGaNA/ µDDS-A laptop, and printer OPTION Shielded and ventilated waste chamber, with door opening on the front Dose calibrator up/down automatic lift MorGaNA cold kit processing system or µDDS-A automatic dispenser Tray for synthesis module Lead pot container Humidity sensor VHP connection predisposition Radiation monitor of the hot cell exhaust ventilation duct GM tube connection to the ENVIRO area monitoring net External PC for audit trail and alarm log file, saving into uncorruptible files Active Safety Software control for cell parameters (negative pressure, filter clogging, ventilation status, UV light timer, etc.) N. 1 manometer for continuous pressure status visualization N. 1 U.V. antibacterial lamp
