- Medical trolley wheel
- TENTE International GmbH

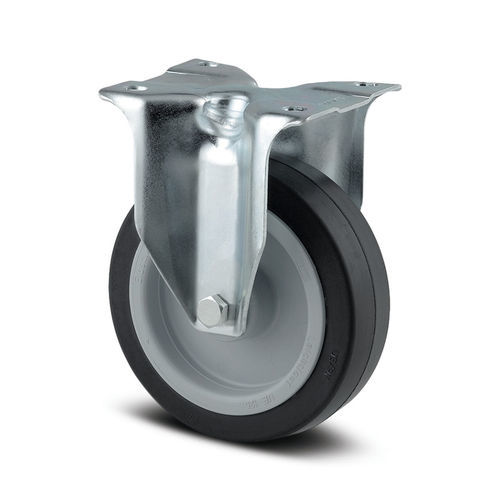

Medical trolley wheel Alphapolyamidestainless steelfixed
Add to favorites
Compare this product
Characteristics
- Applications
- for medical trolleys
- Options
- polyamide, stainless steel, fixed
- Load capacity
300 kg
(661 lb)- Wheel diameter
160 mm
(6.299 in)
Description
Fixed castor, Fork made of Stainless Steel, wheel axle with nut, plate fitting. Wheel centre made of Polyamide, Tread: elastic-tyre, non-marking, roller bearing, stainless
Technical data
Roll performance
Movement noise
Attrition
Corrosion resistance
Technical data
Wheel width
46 mm
Size of Plate
137 x 115 mm
Plate hole centres
105 x 80/75 mm
Plate hole
11 mm
Overall height
200 mm
Temperature
- 20 / + 80 °C
Standard
EN 12532
Weight
2 kg
Hardness of tread
A 63 Shore
Stainless
Yes
Electrical conductivity
No
