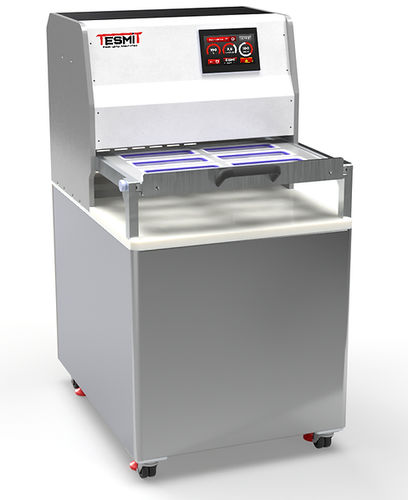

Medical sealer MIZAR MED

for the pharmaceutical industryfor blister

Traysealer machine for blister. Requirements for packaging medical products. Syringes, implants, surgical supplies, diagnostic tools, disposable products. Constant welding temperature control, with a certified maintenance delta of +/- 1 degree Process validation: Installation Qualification IQ Operational Qualification OQ Management of coding and marking. Barcode reading. For perfect traceability. Digital control of applied welding pressure and approach speed Calibration certificates for control instruments issued by ACCREDIA - UNI CEI EN ISO/IEC 17025 laboratories After-sales assistance, Service contracts for scheduled calibration. Data sheet: Welding temperature (°) - Delta tolerance management Welding time (s) - Settable decimal Welding pressure (bar) - Delta tolerance management Management of alarms and cycle waste Personalized recipes Work cycle counter. Instant display of real parameters in cycle The sealing of the blisters with Tyvek or medical paper is carried out by hot welding using multiple sealing plates thermo-controlled by certified probes (+ / - 1 degree) The insertion and positioning of the product to be sealed will take place manually, the closing of the drawer can be manual or automatic. At the end of the cycle the drawer will open automatically allowing quick removal of the sealed product. The electronic control of the equipment will take place via a PLC system, with set-up pages for several different work cycles. The equipment will be equipped with a switch for remote assistance and cloud transmission of machine parameters. Furthermore, a system is integrated into it Certified firewall.
