With die cutting mold
Modified atmosphere - MAP

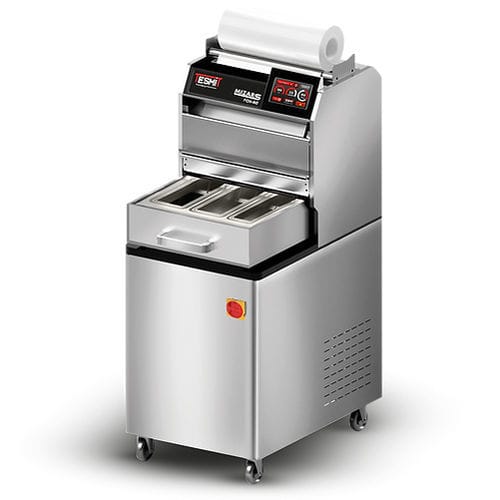

Our MIZAR Tray sealers machine is ideal for packaging semi-processed or processed foods with sauces and liquids. Thanks to MAP modified atmosphere sealing and heat sealing, it allows you to increase the expiry date while maintaining the freshness of the product. The sealing process is semi-automatic, with customized die-cutting of the tray profile. The construction quality and high functional efficiency make MIZAR optimal for intense and continuous use.
Perfect heat sealing
Top seal is the basic function of a heat sealer, it consists in making the film adhere to the tray using heat
Easy opening
Easy Peel film sealing technology in order to make the opening process always easy and intuitive.
MAP - Protective Atmosphere
Technology with injection of filler gases, which allow the product to be preserved for longer, guaranteeing long shelf life and freshness.
Perfect tray cut
The extreme care in the construction of the mold allows a perfect cutting of the excess film waste, guaranteeing a high quality product.
Maximum tray size
Maximum area: 400 x 280 x H120 mm
Example:
No. 1 GN 1/2
Nr. 2 GN 1/4
Data sheet:
Machine structure in ALUMINUM / STAINLESS STEEL
Maximum film reel length: 430 mm
Maximum tray size: 400x280 h120 mm
Automatic film cutting, die-cutting blades
Molds for interchangeable trays
Electrical supply: 400 V 50 Hz / 3P +N +T
Machine dimensions: L 510 x H 1350 x D 750 mm - 160.00 Kg
Vacuum pump: Becker 40 m3/h
SOFTWARE - TESMIT PKG 4.0
Our proprietary Tesmit software allows us to provide our customers with an unprecedented user experience.
