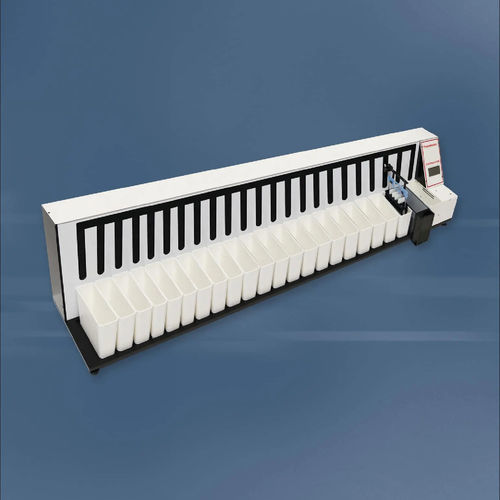

Slide stainer CellStain® 23

automaticfor cytologycell

FEULGEN STAINING DNA image cytometry DNA karyometry HE STAINING PAPANICOLAOU STAINING Advantages that impress Programmable for individually configurable steps in thestaining, rinsing and drying stations Programming security thanks to password-protected access Low transfer of reagents through the slide holder Freely selectable agitation and drip off time to further minimisethe transfer of reagents Performance of various staining operations by moving the slideholder forwards and backwards Optional drying station Optional water rinsing station Optional fume hood with activated charcoal filter Equipment 23 staining stations Slide holders for 30 slides 23 cuvettes (standard) for 500 ml with cover Memory slots for customised programming Optional choice of up to 8 temperature-controlled cuvettes 1 optional drying station Up to 4 optional water rinsing stations Technical specifications Dimensions and weight: 160 x 35 x 28 cm (W x H x D),approx. 25 kg Safety: CE/IVD Voltage: 208–240V/50Hz
