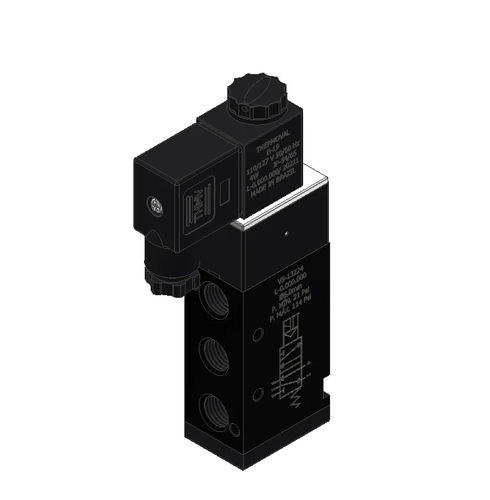

Gas valve 5/2-Way

solenoidstainless steel

OPERATION 5/2-Way Simple Solenoid CONNECTION Connection Female 1/4" NPT (ANSI B2.1) - Inlet. Connection Female 1/4" NPT (ANSI B2.1) - Outlet. Connection Female 1/4" NPT (ANSI B2.1) - Escape. ORIFICE Ø 6,0 mm - ( Kv 0,56 ) Flow Factor. MATERIAL Body - Aluminum (ASTM B211) - Surface in Anodized. Plunger/Pole - Stainless Steel (AISI 430 Fr). Spring - Stainless Steel (AISI 302). Wire - Enameled Copper Class HR 200°C (IEC 60317-8). SEAL Seal - Polymer N 30000-7 B (Nitrile) ELETRICAL PROPERTIES Width 22.2 x Height 31.0 x Length 29,5 x Diam. the Nucleo: 9,2 Protection class: IP65 Encapsulation: Polyamide 6 (30% fiber) or PPS 110/127 V 50/60 Hz HOLDING - 11,0VA INRUSH - 18,7VA Electric connection DIN 43650B optional led MAIN APPLICATIONS Air/Oxygen * Other applications consult compatibility PRESSURE (PSI) Min. 21 / Max. 114 SPECIAL FEATURES WEIGHT (KG) 0,31600
