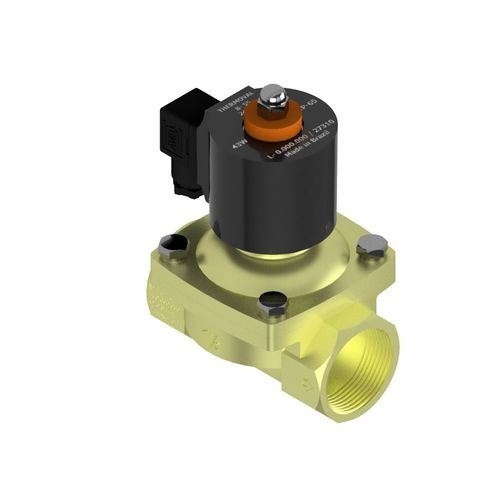

Medical valve solenoidstainless steelbrass
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- solenoid
- Material
- stainless steel, brass
- Color
- black
Description
OPERATION
2-Way Normally Closed ---> Open when energized.
CONNECTION
Connection Female 1.1/2" NPT (ANSI B2.1) - Inlet.
Connection Female 1.1/2" NPT (ANSI B2.1) - Outlet.
ORIFICE
Ø 40,0 mm (Kv 36,1) Flow Factor.
MATERIAL
Plunger/Pole Stainless Steel (AISI 430 Fr).
Spring Stainless Steel (AISI 302).
Wire Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL
Seal Fluorcarbon Elastomer (Viton)
ELETRICAL PROPERTIES
Encapsulation: Polyamide 6 (30% glass fiber black color)
24 VDC
43 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Water, Air, inert gases and (Light Oil @ 300 SSU with Press.Max.100 PSI) - Max.Temp. 82°C.
* Other applications consult compatibility
PRESSURE (PSI)
Min. 0 / Max. 150 PSI - ((Oil @300 SSU) 100 PSI)
SPECIAL FEATURES
WEIGHT (KG)
2,40000
