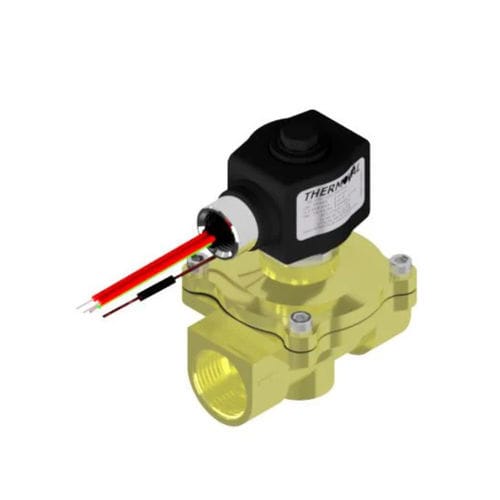

Gas valve 2way

solenoidstainless steelbrass

OPERATION - 2-Way Normally Closed ---> Open when energized. CONNECTION Connection Female 1" NPT (ANSI B2.1) - Inlet. Connection Female 1" NPT (ANSI B2.1) - Outlet. ORIFICE Ø 25,0 mm - (Kv 11,95) Flow Factor. MATERIAL - Body - Brass (ASTM B16). Plunger/Pole - Stainless Steel (AISI 430 Fr). Spring - Stainless Steel (AISI 302). Wire - Enameled Copper Class HR 200°C (IEC 60317-8). SEAL Seal - Fluorcarbon Elastomer (Viton) ELETRICAL PROPERTIES Dimensions (mm): core diameter: 16,8; width: 45,5; length: 76,5; height: 41. Protection Class: IP 66. POLYAMIDE with 30% of fiberglass polymer encapsulation 24 VDC 25 W Tinned Copper Cable with 500 + -10 (mm). MAIN APPLICATIONS Fluid of silica, air, lubricant to the base of Di-Ester, liquid petroleum gas(LGP), H2O, Ethanol, natural gas and cold oxygen gas. * Other applications consult compatibility PRESSURE (PSI) - Min. 0 / Max. 100 SPECIAL FEATURES WEIGHT (KG) - 0,55500
