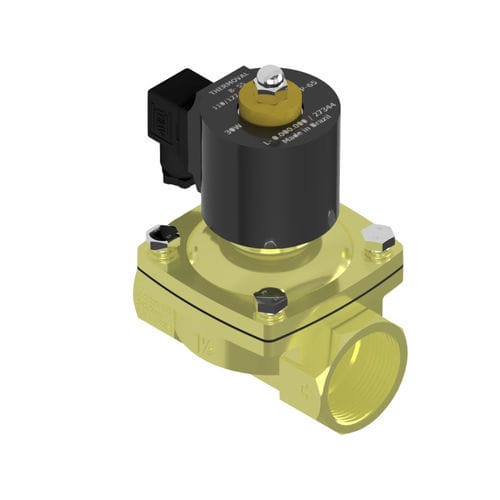

Gas valve 1/2" NPTsolenoidstainless steelbrass
Add to favorites
Compare this product
Characteristics
- Applications
- gas
- Technology
- solenoid
- Material
- stainless steel, brass
Description
OPERATION
2-Way Normally Closed ---> Open when energized.
CONNECTION -
Connection Female 1.1/2" NPT (ANSI B2.1) - Inlet.
Connection Female 1.1/2" NPT (ANSI B2.1) - Outlet.
ORIFICE -
Ø 40,0 mm - (Kv 36,1) Flow Factor.
MATERIAL -
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL -
Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL PROPERTIES
Width 47.0 x Height 57.0 x Length 57.0 x Diam. the Nucleo: 20.0
Protection class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
110/127 V 50/60 Hz
30 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Water, Air, inert gases and (Light Oil @ 300 SSU with Press.Max.100 PSI) - Max.Temp. 82°C.
* Other applications consult compatibility
PRESSURE (PSI)
Min. 0 / Max. 150 PSI - ((Oil @300 SSU) 100 PSI)
SPECIAL FEATURES
WEIGHT (KG) -
2,40000
