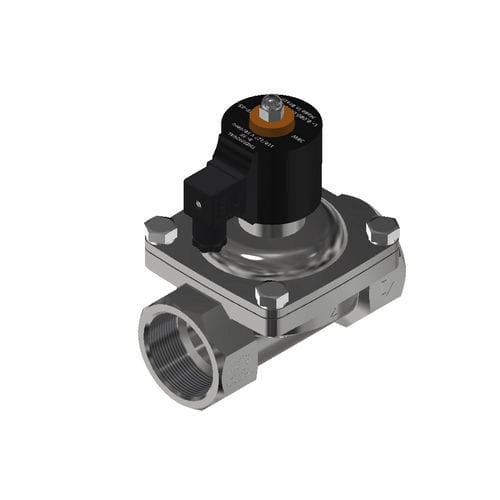

Gas valve 2way

solenoidstainless steel

OPERATION 2-Way Normally Closed ---> Open when energized. CONNECTION Connection Female 2" NPT (ANSI B2.1) - Inlet. Connection Female 2" NPT (ANSI B2.1) - Outlet. ORIFICE Ø 50,0 mm - (Kv 43,86) Flow Factor. MATERIAL Body - Stainless Steel (AISI 316). Plunger/Pole - Stainless Steel (AISI 430 Fr). Spring - Stainless Steel (AISI 302). Wire - Enameled Copper Class HR 200°C (IEC 60317-8). SEAL Seal - Fluorcarbon Elastomer (Viton) ELETRICAL PROPERTIES Width 47.0 x Height 57.0 x Length 57.0 x Diam. the Nucleo: 20.0 Protection class: IP65 Encapsulation: Polyamide 6 (30% glass fiber black color) 110/127 V 50/60 Hz 30 W DIN 43650A Electric connection MAIN APPLICATIONS Fluid of silica, air, lubricant to the base of Di-Ester, liquid petroleum gas(LGP), H2O, Ethanol, natural gas and cold oxygen gas. * Other applications consult compatibility PRESSURE (PSI) Min. 10 / Max. 100 SPECIAL FEATURES WEIGHT (KG) 3,27000
