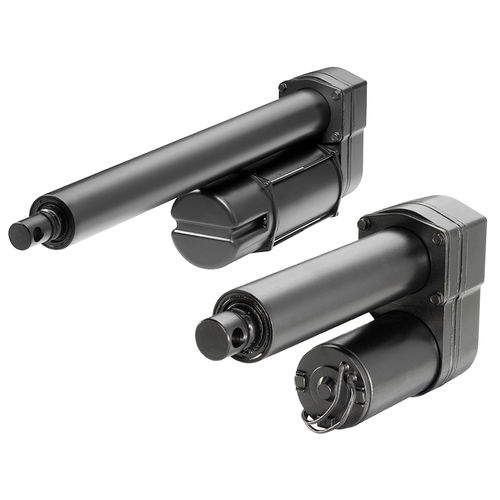

Linear actuator A12C10A5-06M0BH-DEE

electricmedical

Actuator, Electrak GX, 1 x 115 Vac, Dynamic Load: 2250 N, acme, 30 mm/s , Max Stroke Length: 6 inch, Control: Hand Wind Robust and Reliable Acme and Ball Screw Models Static Load up to 18kN/4000lbf Dynamic Load up to 9kN/2000lbf Overload Clutch for Mid and End of Stroke Protection Motor With Thermal Switch Maintenance Free Capacitor required to run the actuator. 115 Vac = 35 µF, p/n 9200-448-002, 230 Vac = 10 µF, p/n 9200-448-003. Anti-Rotation - No Brake - Yes with ball screw, self-locking lead screw Certifications - CE Special Connector - Flying Leads End Play, Max - 1.016 mm / 0.040 in IP Rating, Dynamic - N/A IP Rating, Static - IP45 Manual Override - Yes Material - Painted Zinc Alloy, Stainless Steel Nominal Stroke - 152.40 mm / 6.00 in Protection, End of Stroke - Overload Clutch Protection, Mid Stroke - Overload Clutch Screw Type - Acme Temperature Max - 65 °C / 149 °F Temperature Min - -26 °C / -15 °F Temperature Monitoring - No Voltage - 115 Vac Voltage Tolerance - 102-130 VAC 60 Hz Maximum Current Draw - 2.8 amp Weight - 6.200 kg / 13.669 lbs Control - None Feedback - None Serialized - No Smart Actuation - No Contains Liquids - No
