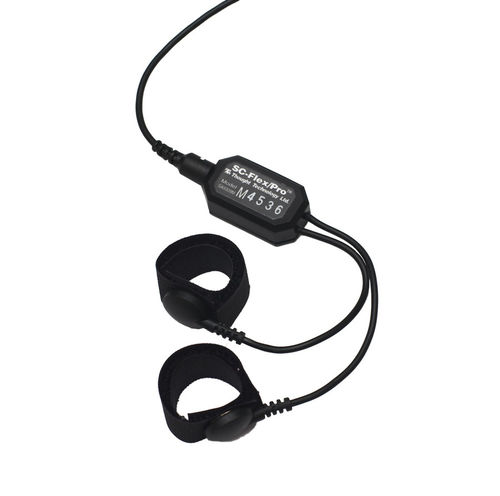

Conductivity sensor SA9309M

medical

Skin Conductance sensor measures the conductance across the skin, and is normally connected to the fingers or toes. Supplied with two finger bands. Specifications Size (spprox.): 37 mm x 37 mm x 12 mm (1.45” x 1.45” x 0.45”) Weight (spprox.): 25g (1.0 oz) Input Impedance: 10¹²Ω in parallel with 10pF Operating Input Bias: ~ 1.0 to 2.0 V above sensor ground Signal Input Range: ± 40 mV Channel Bandwidth: 0.05 Hz - 1 kHz Signal Output Range: ± 2.0 V (+ 2.8 V if used with Sensor Isolator) Input / Output Gain: 50 Supply Voltage: 7.26 V (±0.05 V) Current Consumption: < 1.5 mA Accuracy: ± 5%
