Joint movement sensor T9550

monitoring

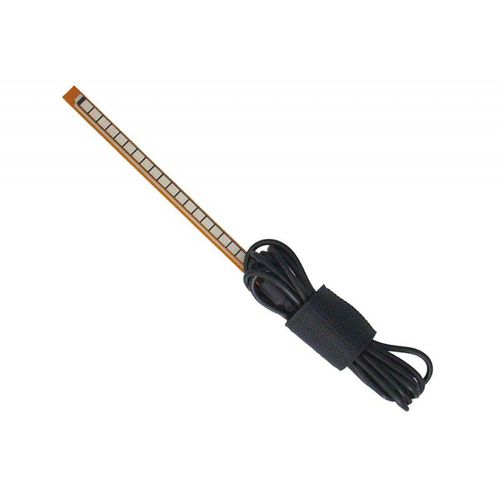

Bend sensor is small enough to be placed on fingers and wrists to monitor joint motion 180 degrees of flexion. Use sensors back to back to get a 360 degree range. Specifications Length: ~152cm (60”) Weight: ~10g Bend Sensor Type: Variable resistive Sensor Resistive Range: 5KΩ – 400KΩ (native Infiniti modes) Output Voltage Transfer Function: Vout = [RBs +243KΩ/(RBs +992KΩ * Vs where RBs = Resistance of Bend sensor in KΩand Vs = Sensor supply voltage Current Consumption: < 1mA @ 7.26V nominal Supply Voltage: 7.26VDC Resistance to Voltage Accuracy: ± 1%
