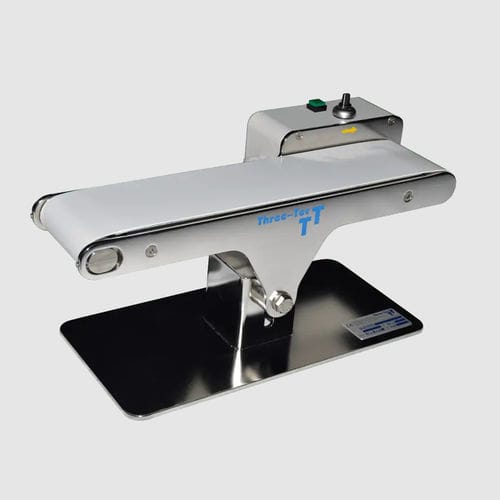

Belt conveyor

for the pharmaceutical industry

The conveyor belt is suitable for gentle removal and cooling of the extrudate. To achieve more efficient cooling of the extrudate, a cooling tank can optionally be integrated on which the belt rests and is continuously cooled. This enables the haul-off of extrudates with a temperature of up to 300 °C. The belt speed can be set variably between 0 and 6.5 m/min. The conveyor belt is controlled by means of an integrated potentiometer or optionally directly via the control of the Three-Tec extruder. Material conveyor belt: silicone or PTFE Integrated or external control Belt speed: 0 to 6.5 m/min Max. product temperature: 300 °C Height and belt angle adjustable Optionally with cooling tank (water/air) TECHNICAL DATA Length - 100-500 mm Width - 100 mm Height - 160-200 mm (adjustable) Tape structure - multilayer Temperature resistance continuous operation - -30 to 150 °C Temperature resistance short operation - -50 to 180 °C Max. product temperature - 300 °C Voltage - 100 to 240 VAC
