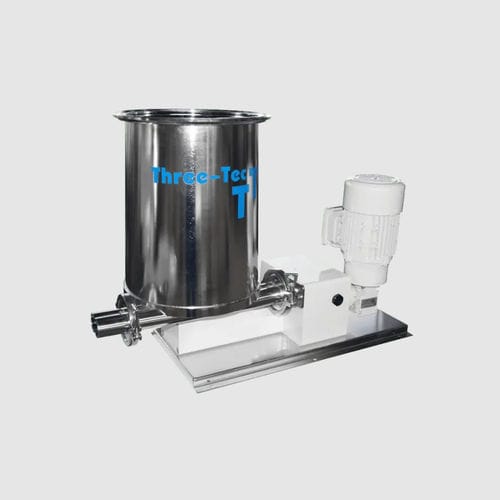

Twin-screw feeder ZD 32 FB

for the pharmaceutical industryfor powders

The ZD 32 FB volumetric flat-bottom twin-screw feeder with bottom scraper is particularly suitable for the feeding of poorly flowing and free-flowing powder, which tends to clump or to cake on the hopper wall, or which has a strong tendency to form bridges. The bottom scraper discharges the bulk material gently and completely. TECHNICAL DATA Throughput with AC three-phase motor - 8.7 to 2'460 l/h Throughput with servo motor - 2.6-3'135 l/h Diameter metering tools - 32 mm Weight - ≈ 55 kg Dosing hopper capacity - 14.5 l Speed with AC three-phase motor - up to 750 min-1 (depending on gearbox) Speed with servo motor - 4-750 min-1
