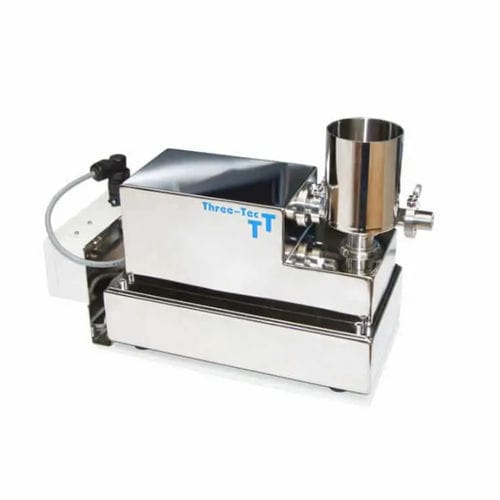

Twin-screw feeder ZD 9 FB

for the pharmaceutical industryfor powders

The ZD 9 FB twin screw feeder with flat bottom is suitable for precise volumetric or gravimetric feeding of poorly flowing and free-flowing powder, which tends to clump or cake on the hopper wall, or which has a strong tendency to form bridges. The bottom scraper discharges the bulk material gently and completely. TECHNICAL DATA Feeding rate - 0.02 to 29.53 dm3/h Ø Metering tools - 9 mm Voltage | Frequency - 110-240 V | 50-60 Hz Motor - Stepper motor Weight - ≈ 7 kg with potentiometer, ≈ 9 kg with logo! or S7-1500 Speed - 1-500 min-1 Hopper volume - 0.5 l (standard)
