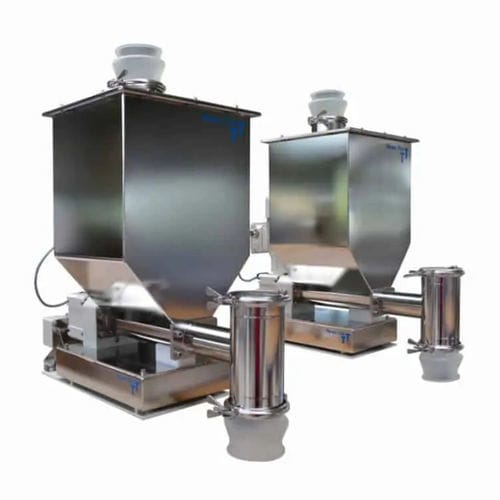

Screw feeder ED 40 horizontalverticalfor the pharmaceutical industry
Add to favorites
Compare this product
Characteristics
- Type
- screw
- Operational mode
- vertical, horizontal
- Product applications
- for the pharmaceutical industry
- Specific use
- for powders, for granulates
Description
The ED 40 volumetric single-screw feeder without discharge aid/bridge breaker with horizontal or vertical discharge pipe is particularly suitable for the feeding of free-flowing products with good flow properties, such as powders, flakes, fibers, granulates and agglomerates up to 10 mm particle size. Discharge tube and refill nozzles are provided with bellows for dust-free dosing.
TECHNICAL DATA
Throughput with AC three-phase motor - 28-700 l/h
Throughput with servo motor - 1.2-930 l/h
Ø Metering tools - 40 mm
Weight - depending on the execution
Speed with AC three-phase motor - 45-560 min-1
Speed with servo motor - 2-750 min-1
