Screw feeder ED 65horizontalverticalfor the pharmaceutical industry
Add to favorites
Compare this product
Characteristics
- Type
- screw
- Operational mode
- vertical, horizontal
- Product applications
- for the pharmaceutical industry
- Specific use
- for powders, for granulates
Description

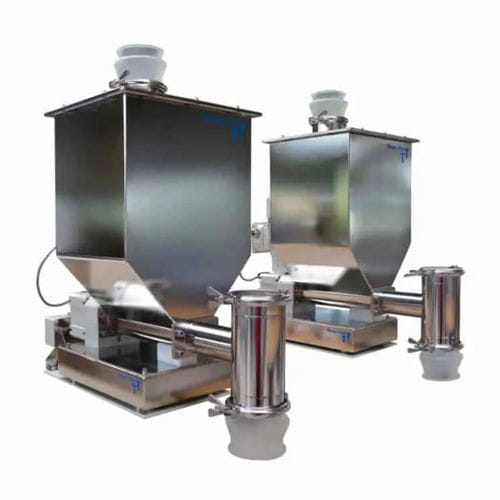

The ED 65 volumetric single-screw feeder without discharge aid/bridge breaker, with intervention protection and horizontal or vertical discharge pipe is particularly suitable for the feeding of free-flowing products with good flow properties, such as powders, flakes, fibers, granulates and agglomerates up to 10 mm particle size.
TECHNICAL DATA
Throughput with AC three-phase motor - 160-2'000 l/h
Throughput with servo motor - 6.7-4'000 l/h
Ø Metering tools - 65 mm
Weight - depending on the execution
Speed with AC three-phase motor - up to 560 min-1 (depending on gearbox)
Speed with servo motor - 4-750 min-1
