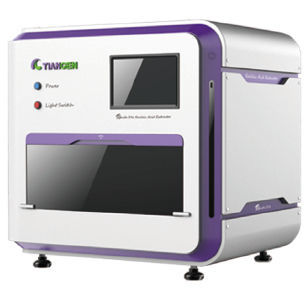

Research DNA extractor TGuide S96

TGuide S96 Automated Nucleic Acid Extractor adopts the latest magnetic rod adsorption and transfer magnetic beads method. 96-deep well plates and different kinds of magnetic beads extraction reagents are applied to automatically extract and purify nucleic acid from 1-192 blood/cells/tissues/viruses and other samples. This extractor can be equipped with an 24 flux module which has good adaptability to large-volume samples. It is equipped with TIANGEN pre-packed reagents and can simultaneously extract 1-24 samples. The maximum sample volume handled by the instrument is 5 ml. It is especially suitable for extraction of free nucleic acid in serum and plasma. It has high extraction yield and good purity, and can be used in fields such as tumor detection, NIPT, etc. Features ■ Extremely high throughout: 192 samples can be extracted in a single run. ■ Operation mode: 10.1-inch touch interface (Windows system) ■ Magnetic bead adsorption: Cycle adsorption, recovery efficiency ≥ 98% ■ Movement mode: Four-dimensional integrated movement, confirming the best mixing effect ■ Replaceable modules: A 24-flux modules can be provided, with flexible processing volume ■ Professional contamination prevention: Effective avoidance of cross-contamination between wells and plates
