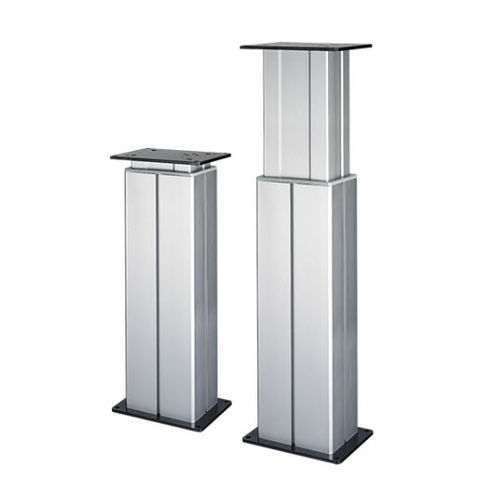

Medical lifting column TL18

for examination tablesfor operating tablesfor x-ray systems

The TL18 column is designed for medical applications such as nurse carts, ophthalmological devices, X-ray machines, etc. The TL18 features an extruded aluminum rectangular appearance. Our high capacity, yet economical, TL18 provides stable vertical lifting. This streamlines the engineering design process and replaces the older style, unsafe lifting mechanisms which have many moving stages and pinch points. Max. static bending moment: 400Nm Max. speed at max. load: 6.6mm/s Max. speed at no load: 45mm/s Retracted length: ≥ Stroke+147mm Dimension of outer tube: 196.4*148.4mm rectangular Stages: 2-stage, Stroke: 100~700mm Certificate: IEC60601-1, ES60601-1, IEC60601-1-2, UL73, EMC Output signals: Hall sensors Options: Cable exit from top or bottom side, direct cut system Voltage: 12/24V DC Operational temperature range: +5°C~+45°C
