Medical lifting column TL18ACfor examination tablesfor surgical tablesfor treatment chair
Add to favorites
Compare this product
Characteristics
- Applications
- medical, for examination tables, for surgical tables, for treatment chair, for x-ray systems, for massage tables, for medical trolleys, for overbed tables, for physiotherapy examination tables
- Other characteristics
- telescopic, 2-stage
Description

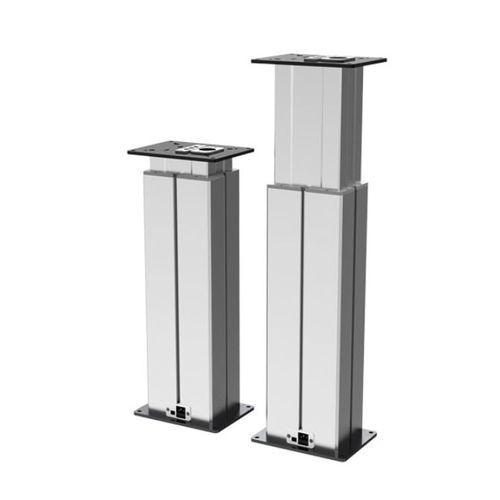

TiMOTION’s TL18AC electric lifting column is designed for industrial and medical applications such as height-adjustable workstations, screen, and lifting tables. The TL18AC features an extruded aluminum rectangular appearance. It is equipped with an AC plug to connect the computers, TV, or other devices directly.
Self-locking force: 4,500N
Max. dynamic bending moment: 250Nm
Max. static bending moment: 500Nm
Max. speed at max. load: 6.6mm/s
Max. speed at no load: 45mm/s
Retracted length: ≥ 383mm
Dimension of outer tube: 196.4*148.4mm rectangular
Stages: 2-stage,
Stroke: 20~700mm
Options: AC cable exit from top end, top side; Ethernet socket
Voltage: 100~240V AC (SMPS)
Operational temperature range: +5°C~+45°C
