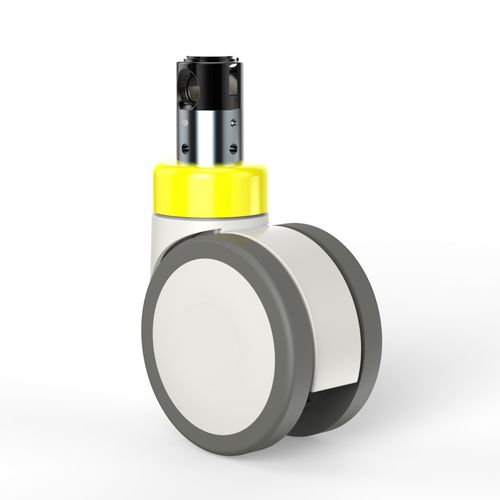

Hospital bed wheel T08ELPP100D06Dpolyurethaneswiveling
Add to favorites
Compare this product
Characteristics
- Applications
- for hospital bed
- Options
- polyurethane, swiveling
- Load capacity
120 kg
(265 lb)- Wheel diameter
100 mm
(3.937 in)
Description
100mm Hospital bed caster product description:
Consisted of pressed die casting, aluminium with ABS cover. Precision ball bearing sealed in swivel head.
Wheel: PU (Polyurethane) precision ball bearing in the wheel centre.
ELP (Thermoplastic Elastomer with Electric Conductive function) with plastic thread guard, precision ball bearing in the wheel center.
WIDTH OF TREAD -
13.5mm
HARDNESS OF TREAD -
shore A 92±3
OFF-SET -
31mm
SWIVEL RADIUS -
81mm
SWIVEL INTERFERENCE -
162mm
OVERALL HEIGHT -
129mm
FITTING -
Directional Lock
BOLT DIAMETER -
32mm
BOLT LENGTH -
50L
STANDARD -
DIN EN 12531
WHEEL MATERIAL -
ELP (Thermoplastic Elastomer with Electric Conductive Material)
SPECIAL -
Electric Conductive
LOAD CAPACITY (STATIC) -
240 kgs
