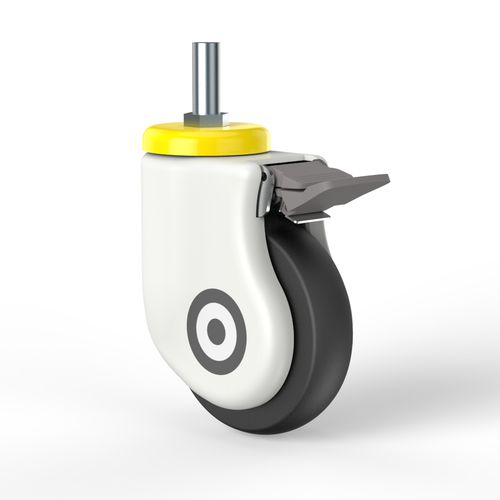

Hospital bed wheel 5ELPA7GPA

with brakeswiveling

Housing made of pressed steel, zinc plated with plastic cover and precision ball bearing sealed in swivel head. Wheel: TPE (Thermoplastic Elastomer) with plastic thread guard, precision ball bearing in the wheel center. WIDTH OF TREAD - 31mm HARDNESS OF TREAD - shore A 92±3 OFF-SET - 42mm SWIVEL RADIUS - 104.5mm SWIVEL INTERFERENCE - 207mm OVERALL HEIGHT - 178mm TREAD STEM - M12×30L FITTING - Thread Stem WHEEL MATERIAL - ELP (Thermoplastic Elastomer with Electric Conductive Material) SPECIAL - Electric Conductive LOAD CAPACITY (STATIC) - 260 kgs
