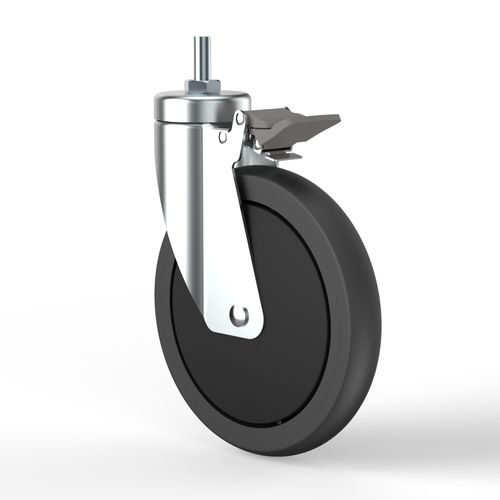

Stretcher wheel 8ELPA7GAwith brakeswiveling
Add to favorites
Compare this product
Characteristics
- Applications
- for stretcher
- Options
- with brake, swiveling
- Load capacity
130 kg
(287 lb)- Wheel diameter
200 mm
(7.874 in)
Description
Housing made of pressed steel, zinc plated and precision ball bearing sealed in swivel head.
Housing: Chrome plated is available.
Wheel: TPE (Thermoplastic Elastomer) with plastic thread guard, precision ball bearing in the wheel center.
ELP (Thermoplastic Elastomer with Electric Conductive function) with plastic thread guard, precision ball bearing in the wheel center.
WIDTH OF TREAD -
31mm
HARDNESS OF TREAD -
shore A 92±3
OFF-SET -
60mm
SWIVEL RADIUS -
160mm
SWIVEL INTERFERENCE -
320mm
OVERALL HEIGHT -
256mm
TREAD STEM -
M12×30L
FITTING -
Thread Stem
WHEEL MATERIAL -
ELP (Thermoplastic Elastomer with Electric Conductive Material)
LOAD CAPACITY (STATIC) -
260 kgs
