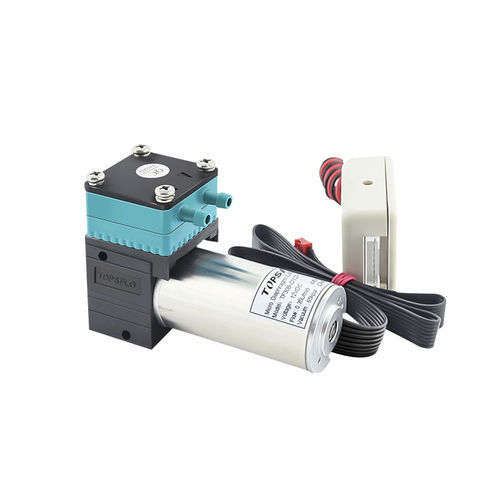

Suction micropump TF30A-D

medicalelectricfor liquids

TOPSFLO micro diaphragm liquid /vacuum pumps are based on a simple principal,the circular power from the motor is converted into oscillating movement by aneccentric, which moves up and down its central point, this motion is then transferredto a diaphragm by means of a connecting rod, an elastic diaphragm, which in conjunction with an inlet and outlet valve creates a pumping action. The TF30A Series offers multiple component configurations allowing them to be used for either vacuum operation, liquid transfer, or alternating operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliabler, highly efficient. TF 30A pumps can be mounted in any position and can deliver up to 400 ml/min depending on the model and will operate against pressures of up to 1 bar. Ease of integration - Equipped with compact brushed or BLDC motors and suction/discharge ports that can be mounted in any configuration, Diaphragm series is a ‘drop-in’ upgrade for any competitive vacuum pump. Increase device portability- Miniature 12/24 VDC motors combined with lightweight corrosionresistant materials promote increased portability of your instrument. Reduce system noise - TOPSFLO Diaphragm pumps employ several proven methods for noise reduction including; structured valve design and enhanced diaphragms for liquid or gas, enlarged bearings for smooth rotation, and external vibration dampeners for the most critical applications. Reduce maintenance costs - Manufactured under strict TUV ISO9001 / TUV IATF16949 quality standards and assembled with the most chemically-inert materials,
