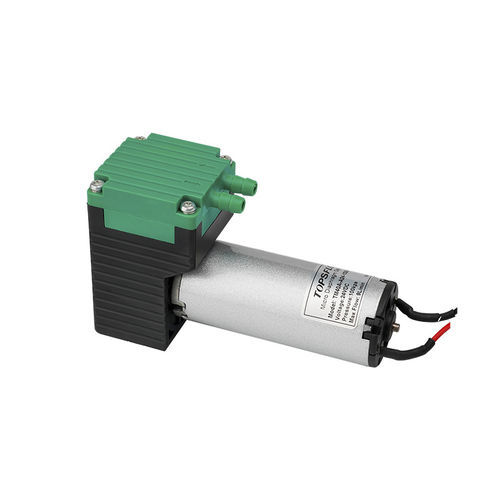

Suction pump TM40A-A series

electricaircompact

TOPSFLO micro diaphragm pumps and compressors are based on a simple principal,the circular power from the motor is converted into oscillating movement by aneccentric, which moves up and down its central point, this motion is then transferredto a diaphragm by means of a connecting rod, an elastic diaphragm, which inconjunction with an inlet and outlet valve creates a pumping action. TM 40 pumps can be mounted in any position and can deliver up to 10 l/min, 12L/min (dual head) depending on the model and will operate against pressures of up to 230Kpa. Features Highest Performance/Size Ratio Innovative and efficient engineering designs enable the TM 40 Series to push the performance envelope in a lightweight, compact size. Performs Quieter Optimized head, chamber, and flow path reduce noise without compromising performance. Lasts Reliably Longer Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 15,000 hours. Uncontaminated flow no contamination of the media due to oil-free operation Little vibration Because of leading edge technologies, top quality bearing, superior brushless motor High level of gas tightness thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head Extreme chemical resistance The use of chemically resistant materials optional such as PTFE FKM or other ,material combinations for the parts which allows the corrosive gas to be pumped. Optimal solution for your application A wide standard range of materials, motors , voltages configurates multiple components system selected
