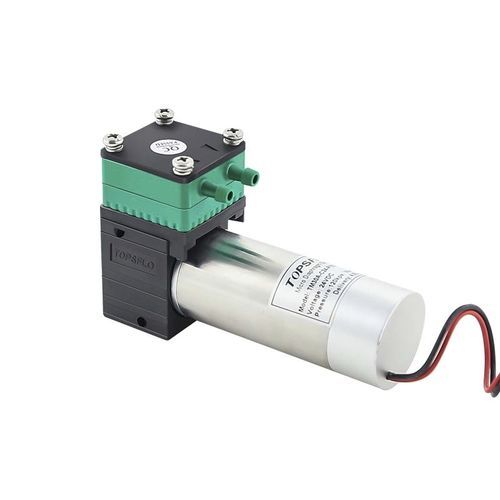

Medical vacuum pump TM30A-C

diaphragmoil-free

TM30A-C Brushless DC Vacuum Pump Motor Type:Brushless DC motor Max flow rate:4.5L/min Max pressure:120kpa Max vacuum: 80Kpa Voltage:12V 24V lLong Life Time:15000 Hours Overview TOPSFLO micro diaphragm pumps and compressors are based on a simple principal,the circular power from the motor is converted into oscillating movement by aneccentric, which moves up and down its central point, this motion is then transferredto a diaphragm by means of a connecting rod, an elastic diaphragm, which inconjunction with an inlet and outlet valve creates a pumping action. Features: >> Suction of mixed gas / liquid media >> Self priming >> Low power consumption >> High efficiency >> Compact design >> Reduced pulsation >> Bubble free media transfer >> Oil-less >> Low sound level >> Long lifetime >> Lightweight Application: IVD in vitro diagnostic equipment Automatic biochemical analysis Immunoassay genetic analysis blood analysis Urinalysis Beauty equipment Patient Monitoring Microplate Washer Surgical equipment Therapeutic equipment For customization and samples, please contact us! http://www.topsflo.com/mini-diaphragm-pump/tm30a-c.html
