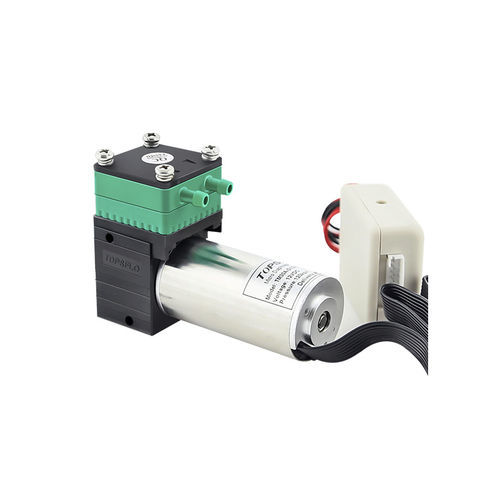

Medical vacuum pump TM30A-D

diaphragmoil-free

Miniature Diaphragm Pump / Vacuum pump/ Air Pump TM30A-D Specification: Motor Type: Brushless DC motor Max flow rate: 4.5L/min Max pressure: 120Kpa Max vacuum: 70Kpa Voltage: 6V/12V /24V Ideal Life Time: 15000 Hours Working Mode: Continuous or Interrupt Overview: TOPSFLO micro diaphragm pumps and compressors are based on a simple principal,the circular power from the motor is converted into oscillating movement by an eccentric, which moves up and down its central point, this motion is then transferred to a diaphragm by means of a connecting rod, an elastic diaphragm, which in conjunction with an inlet and outlet valve creates a pumping action. Feature: 1.Highest Performance/Size Ratio Innovative and efficient engineering designs enable the TM30A Series to push the performance envelope in a lightweight, compact size. 2.Performs Quieter Optimized head, chamber, and flow path reduce noise without compromising performance. 3.Lasts Reliably Longer 4.Uncontaminated flow no contamination of the media due to oil-free operation 5.Little vibration 6.High level of gas tightness 7.Extreme chemical resistance 8.Optimal solution for your application Application: IVD in vitro diagnostic equipment Automatic biochemical analysis Immunoassay genetic analysis blood analysis Urinalysis Beauty equipment Patient Monitoring Microplate Washer Surgical equipment Therapeutic equipment Get more http://www.topsflo.com/mini-diaphragm-pump/tm30a-d.html
