Heating oven ECHOTHERM™

for HPLC columnswithout door

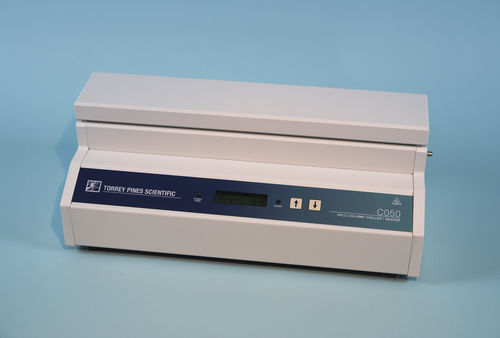

Programmable, single-column chiller/heater with temperature range from 4.0°C to 100.0°C Description The CO50 Chilling/Heating HPLC Column Oven offers the reliability of a completely solid-state system. The only moving parts in the unit are the cooling fans, while its Peltier-based design removes the need for compressors or CFCs. The energy efficient CO50 uses a maximum of 120 watts of power—less than many light bulbs. The CO50 chamber is machined from solid aluminum and insulated with chemically resistant silicon rubber. The case construction is ABS plastic and sheet steel painted with chemically resistant epoxy paint. The cover is machined from block polycarbonate to resist heat and chemicals. Features Full programmability. Stores 5 programs of up to 10 steps each in memory for instant recall and use. Each program can be made to repeat automatically from 1 to 99 times Temperature range from 4.0°C to 100.0°C. Can control at or near room temperature regardless of changes in room temperature Readable and settable to 0.1°C Accuracy to ±0.2°C Built-in stable temperature light which illuminates when set temperature is reached and is stable User settable, built-in column injection counter. Counts to 1000 injections Chamber size 15” (38.1 cm) long, 1.0” (2.5 cm) wide and 1.5” (3.8 cm) deep. Has clamps that hold 1/4” diameter or ⅜” diameter columns up to 30 cm long with room for fittings Chamber milled from one piece of aluminum. The floor is sloped to the right where a ¼” OD tube exits the chamber for collecting any spills. Easy top cover access to columns and fittings Energy efficient Peltier chilling and heating. No CFCs or other refrigerants
