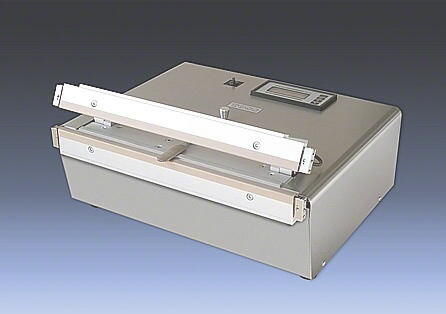

Medical heat sealer 772-DS
manualimpulsebenchtop

medical heat sealer
medical heat sealer
Add to favorites
Compare this product


Characteristics

Applications
medical
Operation
manual
Technology
impulse
Configuration
benchtop
Weight

33.8 kg
(74.5 lb)

Length

399 mm
(16 in)

Width

510 mm
(20 in)

Height

273 cm
(107 in)

Description

This unit differs from our model 772-D by offering you the possibility of vacuum packing prior to heat-sealing. The vacuum pump is operated by a foot switch. A clamping bar closes the bag opening to avoid after-flowing of air. During the vacuum pump being in operation, the suction nozzle reaching out into the bag evacuates the trapped air. When this phase is completed, the sealing cycle automatically starts. Parallel to the closing movement of the top rail, the suction nozzle is simultaneously withdrawn from the sealing area, and the bag is heat-sealed. If the vacuum pump is not required, then it can be switched off and the suction nozzle locked into its resting position. The welding area is always free accessible for normal bag closing. Further technical data: • pump suction capacity: 3 m3/h • cycle start: 500 mbar abs. • power supply: 230V / 50Hz • no air pressure required Options: • gas flushing function with many different programs • USB-interface with software for data log

VIDEO

Catalogs

772-D + DS
772-D + DS
2 Pages
