Abdominal vascular model FBD027

blood vesselstrainingtransparent

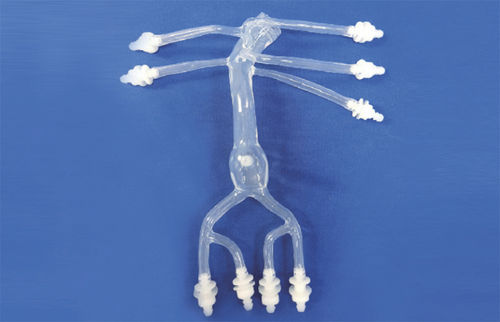

Product introduction: This model is a spatial abdominal aorta model. Which is mainly composed of three parts: the abdominal aorta, common iliac artery, and external iliac artery. The abdominal aorta contains simplified vascular branches: celiac trunk, common hepatic artery, splenic artery, left and right renal arteries, and superior mesenteric artery. The model showed aneurysmal dilatation below the level of the renal artery to the common iliac artery. The entire model is fixed in a transparent acrylic box through customized through-board joints, and the model can be customized and replaced according to customer usage requirements. Product Usage: 1. Development, testing and verification of aortic interventional devices (guidewires, catheters, stents, etc.); 2. Surgical training for interventional treatment of abdominal aortic aneurysm; 3. Quantitative blood flow analysis (CTA, DSA, MRA, OCT, PIV and Doppler ultrasound). Customized service options (the number, location, and size of lesions can be customized according to needs): Abdominal aorta: hepatic artery and renal artery can have complex structures according to needs; Abdominal aorta: stenosis, calcification, embolism; Iliac artery: stenosis, embolism; The model can be customized based on the data files in CT, CAD, STL, STP, STEP and other formats you provide. Product accessories: customized portable aluminum boxes, sheaths, blue valves, portable water bags and syringes, etc.
