Abdominal vascular model XXD016

femoral arteryblood vesselsabdominal aorta

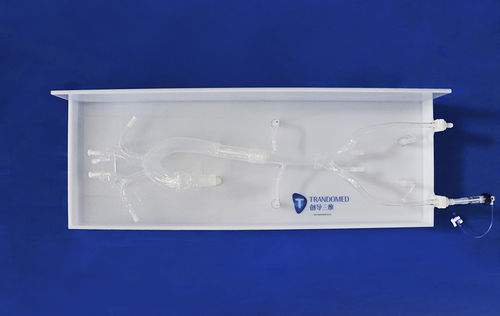

Product description The model is a spatial arterial vascular model. The vascular model mainly consists of two parts: the thoracic aorta (spatial) and the abdominal aorta. It is fixed on a white acrylic board and utilizes transparent acrylic support to ensure the spatial morphology of the blood vessels. The vascular sections are connected through customized transparent pagoda joints, allowing for free assembly and disassembly. Additionally, each section can be replaced with corresponding pathological models according to customer requirements. It is recommended to be connected with a portable pulsatile pump for optimal performance. Vascular Model Details: Thoracic Aorta (Spatial): Includes the aortic arch, brachiocephalic trunk, origin of the left common carotid artery, right common carotid artery, origin of the left and right vertebral arteries, and left and right subclavian arteries. Can be connected to the arteries in the head and abdominal aorta. Abdominal Aorta: Includes the left and right renal arteries, iliac arteries (common, internal, and external), and femoral arteries. Can be connected to the thoracic aorta. A puncture site for the femoral artery is reserved for instrument insertion. Product Usage: 1.Development, testing, and validation of abdominal arterial instruments, as well as interventional devices such as guide wires, catheters, balloons, stents, etc. 2.Training for interventional procedures and instrument demonstrations. 3.Quantitative analysis of blood flow using CTA, DSA, MRA, OCT, PIV, and Doppler ultrasound.
