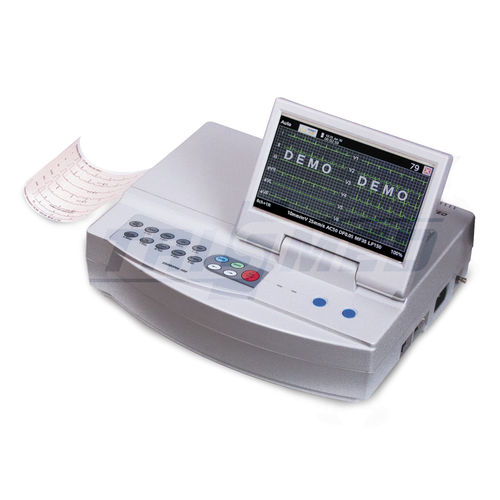

Resting electrocardiograph CARDIPIA 400H

12-channel3-channel6-channel

• 110 mm roll paper / Z-folder (option) • Full disclosure record : max 10 min. • Various HIS data format : HL7, XML, SCP, PDF • Folding LCD for view angle • Real time ECG view on PCNet Technical Specifications Recording Lead Group Standard / Cabrera / Nehb / User defined group Recording Mode Auto / Manual / Rhythm / Periodic / Aoto Start / Elapsed / Calibration(1mV) / Copy / TPH test QRS Beat Display and sound 30 ~ 240 bpm on real time Sensitivity (mm/mV) 2.5, 5, 10, 20, 40, Auto Interpretation (option) Adult / Pediatric, Mean cardiac cycle with segment and measurement Recording Length Min. 3 sec ~ Max. 85 sec. by user select (Auto mode only) ECG Data acquisition - Simultaneous 12-lead ECG Full Disclosure Report Min. 10 sec ~ Max. 10 min. by user set / Manual mode Language English / Spanish / French / Russian / Turkish / Mongolian / others by user request Frequency Response -0.05 ~ 200 Hz (-3dB unfiltered) Time Constant Greater than 3.2 sec Digital filter Baseline drift (0.05 / 0.5Hz) Muscle (25 / 35Hz) and AC (50 / 60 Hz) High frequency noise filter (75 / 100 / 150 / 200 Hz) Calibration Signal sensitivity and Frequency response test using internal 1 mV Arrhythmia Detection -Auto extend recording time to 20 ~ 60 sec by Ventricular Tachycardia and Bradycardia Data Management Save / Delete / Copy / Review / Transfer / Measure Alarm Display & Sound Lead-off detection for individual 10 lead , battery level, Paper empty, HR. Performance AAMI Standard requirements Electrical Safety Class I (Degree of protection against electrical shock) Defibrillation-proof (5000VDC) based on type CF applied part
