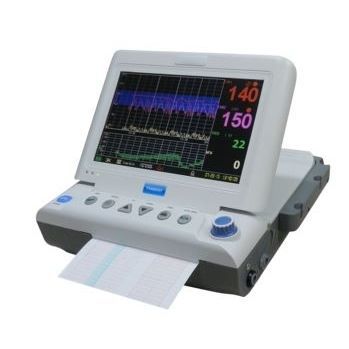

FHR fetal monitor FM8010

twin FHRSpO2NiBP

• Color TFT folding color LCD : 10.2” color TFT folding LCD • 9 crystal pulse wave Doppler transducer • 152mm wide paper (US/International standard) • Built-in rechargeable battery • Accurate fetal movement detection and accounting • Central monitoring interface ECG(option) • Meets IEC60601-2-27:2005 and AMMI EC13:2002 • Integrated the 3 channels of ECG analog circuits,1 channel of respiration and 2 channels of body temperatures, the YSI400/YSI700 is available by software configuration. • With cardiac output monitoring • 13 arrhythmia analysis NIBP(option) • High accuracy, Very good repeatability • Quick inflation and deflation • Two pressure sensors, overpressure protection with hardware and software • Can be used on neonates and infants SpO2(option) • Analog SpO2, perfusion rate is 0.1%. • The safe and solid sensor with low radiation power and without power inside • Less influenced by movement • Less influenced by electrosurgical unit Technical Specifications Fetal Heart Rate Transducer Multi-crystals, pulsed doppler , high sensitively Strength <5mW/㎠ Working frequency 1.0MHz Signal processing special DSP system and modern reorganization. Measurement range 50~210bpm Alarm Range High limit - 160,170,180,190bpm Low limit - 90,100,110,120bpm Maximum audio output power 1.5 Watt Toco Measurement range 0~100 units
