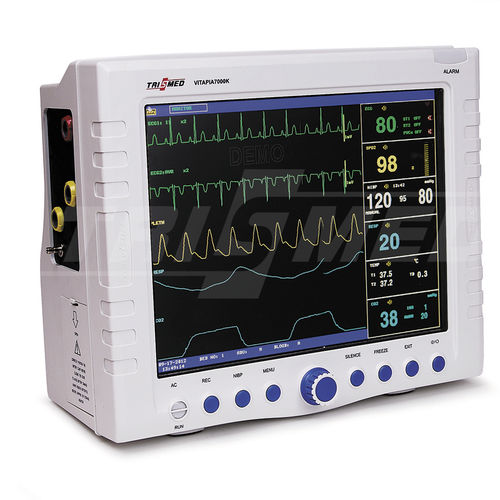

Compact multi-parameter monitor VITAPIA 7000K

ECGTEMPRESP

• Fully portability with steam line handle • Big figure display • NIBP dual over pressure protection • Isolated floating, anti-defibrillation protected and anti-high frequency interference • 72 hours review trend • 480 hours review trend with external memory • Dimension (mm) : 310(L) x 140 (W) x 263 (H) Technical Specifications Anti-electrochock type Class lequipment and internal powered equipment EMC type Class A Temperature Working 5 ~ 40℃ Transport / Storage 40 ~ +55℃ Humidity Working 30% ~ 80% Transport / Storage ≤ 95% (no coagulate) Altitude Working 700hPa ~ 1060hPa Transport / Storage -500hPa ~ 1060hPa Power Supply 100 ~ 240 VAC, 50/60Hz, Pmax = 150VA, FUSE T1.6A Signal Interface ECG Output BNC Amplitude 1 mV Accuracy < 5% Impedance 50Ω Recall Trend Recall - Short : 1hrs, 1 second Resolution - Long : 72hrs, 1 min Resolution Alarm Event Recall 71 alarm events of all parameters and 8/16/32 seconds of corresponding waveform. NIBP Measurement Recall At least 400 NIBP measurement data SD card 72 hrs ECG waveform - 480 hrs TREND review Signal Delay < 20ms
