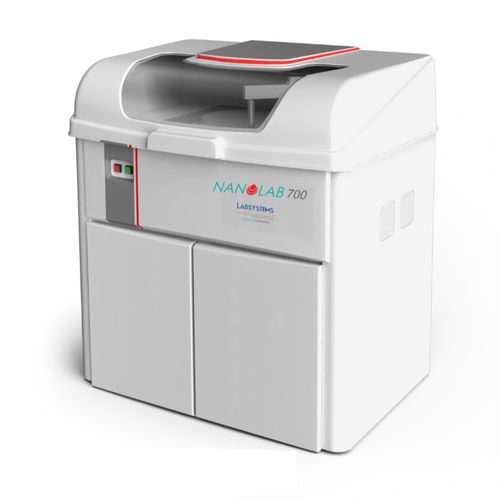

Automatic biochemistry analyzer Nanolab 700

benchtoprandom access

Fully Automatic Random Access Bench Top Clinical Chemistry Analyzer THROUGHPUT Up to 600 photometric tests/hour, max. 720 tests/hour with optional ISE unit SAMPLES AND REAGENT Samples Sample volume : 2 to 100 μI/tests (in increments of 0.2 μI) Sample tray : 95 (5 racks x 19 positions) ID barcode equipped positions for routine, stat and control samples and standard solutions. Primary tube (13 mm diameter, length up to 100 mm) Pediatric vial Blood collection tubes Reagents Maximum number of simultaneous tests : 36 double to 72 single reagent tests + 3 with optional ISE unit 1 to 3 reagents, 2 to 500 μl/tests each (in increments of 1 μl) final total solution volume 180 to 500 μl/test Reagent bottle capacities : 72 cooled positions Barcode Reader for reagents REACTION Water consumption : 3 l/hour Warm air incubator : room, 30°C an 37°C Reaction cuvette : reusable plastic 6 mm light path cuvettes Reaction time : 0 to 10 min. Reaction temperature : 37°C +/- 0.1°C Mixing : After dispensing each reagent OPTICAL SYSTEM End point with reagent blank Factor or standard calibration modes Priority selection by sample (profile) or by reagent (batch) Calibration curve with up to 10 standards Automatic curve fit Fast and two-point kinetics (zero and first order) Routine, batch, STAT, profiles Enzymes, Drugs, Turbidimetric tests Automatic sample dilution on abnormal levels, excessive substrate consumption and/or lack of linearity
