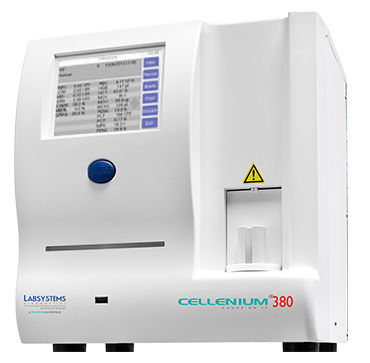

Automatic hematology analyzer Cellenium 380

3-part differentiationwith touchscreen

Double chamber 3 part differential Hematology Analyzer MEASURING DATA Throughput – 80 tests/hour Parameters - 22 hematology parameters, including 3-part differential: WBC, LYM, MID, GRA, LYM%, MID%, GRA%, RBC, HCT, MCV, HGB, MCH, MCHC, PLT, PCT, MPV, P-LCC, P-LCR, RDW-CV, RDW-SD, PDW-CV, PDW-SD MEASURING PRINCIPLE Volumetric impedance method Light absorbance for HGB measurement REAGENTS AND SAMPLING SYSTEM Samples Sample volume - 25 µl of whole blood in normal 3-part mode, 50 µl of pre-diluted blood Sampling method -open tube system with automatic sample rotor Calibration – manual or automatic Reagents Environmentally friendly Diluent & Cleaner reagents and cyanide-free Lyse Clinreact•ECO Reagent Pack:up to 145 measurements QUALITY CONTROL Separate QC database Levey-Jennings graphs MEASUREMENT 2 counting chambers Aperture diameter - 70 µ (RBC/PLT) and 100 µ (WBC) Clog prevention - high-voltage burst on aperture in each analysis cycle and high pressure back-flush Cleaning procedure - high-voltage burst of the aperture, high-pressure back-flush, chemical cleaning of the apertures TECHNICAL FEATURES Data capacity – 10,000 results, including RBC, PLT, and WBC 3-part histogram Host computer interface - USB B port Data back-up method - USB mass storage device Software upgrade method via USB A port using USB mass storage device Printer interface - USB with support for HP printers Built-in thermal printer module, 56 mm wide roll paper, full report with histograms Display 320x240 dots, high-contrast, backlit, color graphics LCD (liquid crystal display) with touch screen
