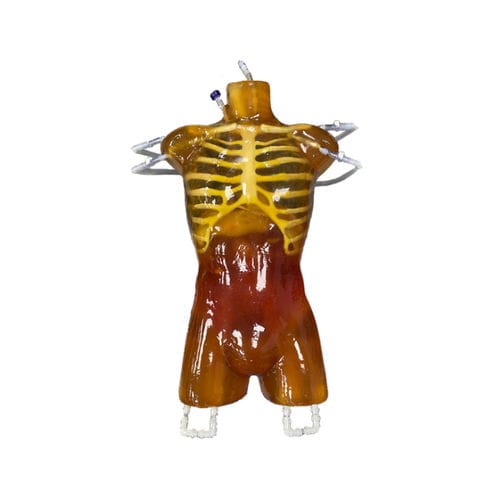

Ultrasound imaging test phantom TO-A04

for radiographyfor CT scantorso

Adult Human Torso (Dynamic) with a beating heart and breathable lungs is a lifelike, anatomically realistic phantom/simulator. Anatomy: • Complete Spine • Complete Ribcage • Shoulders and Clavicles • Pelvis • Partial Femoral Bones • Trachea • Realistic Beating Heart with: – 2 Atria, 2 Ventricles: – Right Ventricle Moderator Band that runs from the anterior wall to the septum bridge – Left Ventricle Papillary muscles to the anterior and posterior walls – Right Atrium Right atrial appendage with distinct muscle structures – Left Atrium Unique muscle structure to the appendage of the left atrium • Appendage Feature • Aorta • Jugular vessels • Pulmonic and Pulmonary Veins attached to LA • Flexible Valvular Structures • SVC • IVC • Inflatable Breathing Lungs • Diaphragm • Liver • Gallbladder • Stomach • Kidneys • Spleen • Pancreas • Large and Small Intestines • Bladder • Prostate Beating Heart Features: • Beating heart model with the cyclic motion of the heart walls • Water-fillable chambers with minimal air pockets • Access to intravenous catheter insertion • Adjustable heart rate (20 BPM–140 BPM) • Adjustable stroke volume (40ml-150ml) • Hysteresis in motion (diastole and systole of the cardiac cycle) • Asymmetrical displacement of the heart chambers • The complete system is installed on a plex glass • Available in 220V or 110V Breathable Lung Features: • Enabling breathing capability by dynamic inflatable lungs • Realistic cyclic respiratory motion • Custom duration of the breathing cycle • Adjustable cyclic respiratory motion (0–45 breaths per minute) • Adjustable breath volume (0.25L-1.2L) • Complete system installed on a secure plexiglass base
