Flow testing system 4080-S

pressuretemperatureexhaled

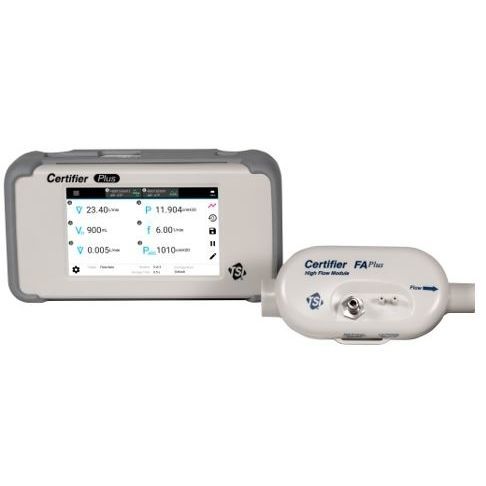

A handheld, full-featured system capable of testing virtually all models of ventilators: adult, pediatric, anesthesia, neonatal and high-frequency. It can also test a variety of other medical equipment such as anesthesia gas delivery machines, air oxygen blenders, medical insufflators, oxygen concentrators, CPAPs, and more. Product Details The Certifier™ Plus Test System 4080-S is made up of a Certifier™ Plus High-Flow Module Kit 4081 and a Certifier™ Plus Interface Module 4089. This multi-function pneumatic test system can measure 28 different test parameters and graph data in real-time. Pressure and temperature compensated bi-directional flow sensors deliver high accuracy gas flow measurements with a fast rate of response and industry-leading, low-pressure drop. Users can measure using STP, ATP, BTPS, BTPD, or user-defined gas conditions and test breath rates up to 1500 bpm. The Certifier™ System 4080-S comes with a standard kit of accessories that includes an inlet filter, airway pressure fitting, (3) adapters, silicone tubing, flow module cable, power supply with plug set, rechargeable Li-ion battery (installed), protective cover, and carrying case. 4080-S Test Parameters Flow Rate, Peak Flow, and Minimum Flow Inhaled and Exhaled Tidal Volumes, Minute Volume Low Pressure (Differential) Peak, PEEP, and Minimum Pressures Mean Airway Pressure High Pressure, Barometric Pressure, Plateau Pressure Static Compliance Inspiratory and Expiratory Times Inspiratory Pause Time, Inspiratory Rise Time I:E Ratio, I:E Ratio Including Pause Time Respiratory Rate Gas Temperature Oxygen Concentration (with optional Oxygen Sensor Kit 4073)
