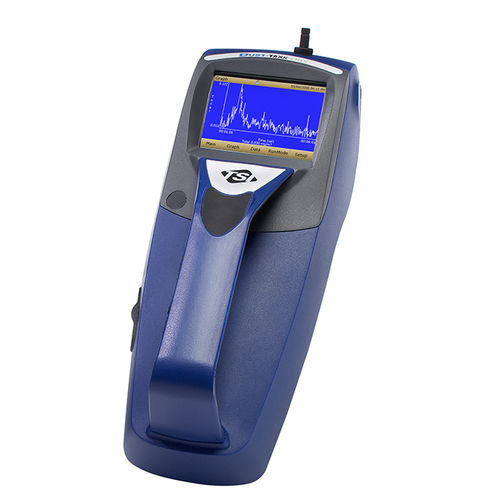

Aerosol sampling photometer DustTrak™ DRX

hand-held

Our handheld DRX Aerosol Monitor is a multi-channel, data-logging, laser photometer for real-time aerosol readings. Portable design allows you to measure dust, fumes, mists and smoke and is suitable for engineering control evaluations. PRODUCT DETAILS Only the DustTrak™ DRX Aerosol Monitor 8534 can simultaneously measure both mass and size fraction. The DustTrak DRX handheld monitor is a multi-channel, battery-operated, data-logging, light-scattering laser photometer that gives you real-time aerosol mass readings. It uses a sheath air system that isolates the aerosol in the optics chamber to keep the optics clean for improved reliability and low maintenance. It is suitable for clean office settings as well as harsh industrial workplaces, construction and environmental sites, and other outdoor applications. The DustTrak DRX handheld monitor measures aerosol contaminants such as dust, smoke, fumes and mists. APPLICATIONS Industrial/occupational hygiene surveys Indoor air quality investigations Point source location monitoring Baseline trending and screening Engineering control evaluations INCLUDED ITEMS Carrying case Rechargeable 3600 mAH Li-Ion battery Switching power supply with universal line cords TrakPro™ data analysis software Zero filter USB (device and host) computer cable Inlet cap (x2) Calibration impactor kit (with PM2.5 impactor and impactor plate) Screwdriver Sample extension tube (3-ft/1-m) Sheath air HEPA filters (x8) Filter removal tool Operation service manual Calibration certificate 2-year warranty
