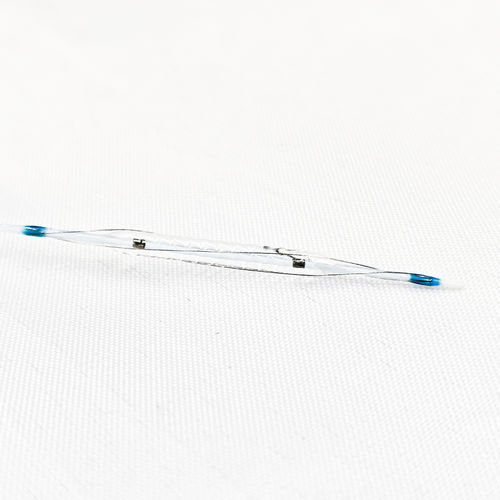

PTCA catheter VesSculpt®

scoringcoronaryballoon

The VesSculpt® Coronary Scoring Balloon Catheter is utilized for balloon dilation of stenotic lesions in coronary arteries during PTCA procedures. Advantages of VesSculpt® Coronary Scoring Balloon Catheter •Uniform Expansion: The design with three wires provides more uniform expansion force, reducing irregular damage to the vessel wall. •Higher Precision: Three wires allow for more accurate control of balloon expansion, achieving more precise treatment outcomes. •Greater Stability: With the additional support and stability provided by three wires, there is less risk of balloon displacement or uneven expansion during dilation. •Wider Applicability: Suitable for various types of narrow lesions, including heavily calcified or complex lesions. •Dual Scoring: Features both anti-slip and cutting capabilities. •Enhanced Drug Delivery and Transfer Rate •Low Profile for High Deliverability •Safe and Controlled Dilation Specifications Balloon Diameter (mm): 2.00, 2.25, 2.50, 2.75, 3.00, 3.25, 3.50, 3.75, 4.00 Balloon Length (mm): 10, 14, 18, 22, 26, 30, 34, 38 Minimum Guiding Catheter: 1.98 mm/6F Compatible Guiding Wire: 0.36mm/0.014 inch Effective Length of the Catheter: 1400mm Marker Location: Both shoulders of the balloon Marker Bands: 2 Nominal Pressure (NP): 10 ATM Rated Burst Pressure (RBP): 22 ATM Fold: 3 Certification: NMPA/CE/FDA under review Service Type: ODM/OEM Supply Capacity: 10,000 pcs/month OEM: Can pass 5F guiding catheter and customized size
