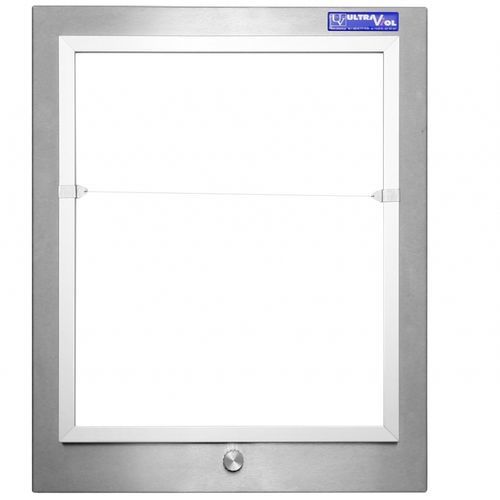

1-screen X-ray film viewer NGP-11 WS

LED

LED-NGP WS X-ray film viewers are medical devices designed for the analysis of medical images on X-ray films. This is one of the basic methods of diagnosing. X-ray film viewers manufactured in LED technology have extremely efficient parameters such as: value of luminance intensity, uniformity of screen luminance, low operating cost - long lifetime, low energy consumption. The devices support the process of analyzing X-ray films by doctors. The products are made in the 1st class of protection against electric shock. They are integral part of operating theaters, doctor’s offices, X-ray laboratories,etc. WS marking means built - in version. The devices can be fit into the wall panels in reference to previously sent plans and drawings. TECHNICAL DATA: Power supply: 90-260V, 50-60 Hz Power consumption 65 W Luminance: 600 - 6000 cd/m² Uniformity >95% Screen size: 360 x 430 mm Frame qty.: 1 Step-less luminance adjustment: 10-100% Colour temperature of the lamps light: > 6500 K Protection against electric shock: I IP code: IP 20 Recess size: 435 x 50 x 545 mm Overall dimensions: 470 x 74 x 580 mm Weight: 6.0 kg
