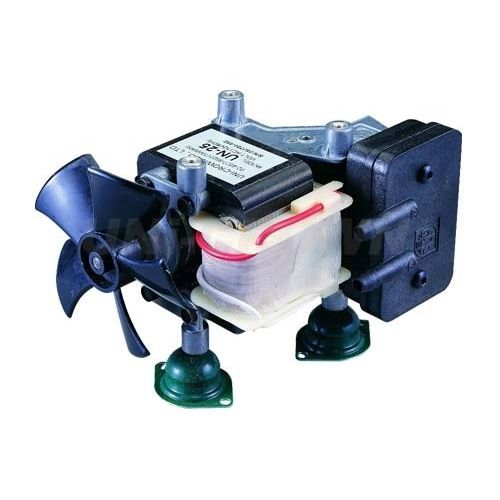

Medical vacuum pump UN-25Nelectronicoil-free
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- electronic
- Options
- oil-free
- Flow
18 l/min
(4.76 us gal/min)- Power
90 W
(0.12 hp)- Weight
1.5 kg
(3.3 lb)- Length
145 mm
(5.7 in)- Width
130 mm
(5.1 in)- Height
105 mm
(4.1 in)
Description
Can be used as vacuum & Air compressor, Oilless operation, Compact design,Low noise level
Application：
SMT packaging equipment, Beauty apparatus,Medical/Various application,Household appliances
Certification：
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009
Product Specifications
Rated Voltage - V - AC 110
Max.Vacuum - mmHg - 550
Pressure - kgf/cm2 - 2.5
Open Flow - LPM - 15(60Hz) / 13(50Hz)
Installation Size - mm - 22 x 90
Hose ID Suggestion - PT - Φ 6
