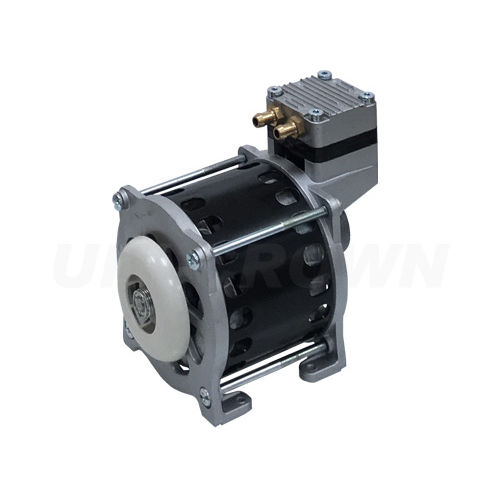

Medical vacuum pump UN-16Ypistonoil-free
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- piston
- Options
- oil-free
- Flow
18 l/min, 20 l/min
(4.76 us gal/min, 5.28 us gal/min)- Power
80 W
(0.11 hp)- Weight
1.9 kg
(4.2 lb)- Length
145 mm
(5.7 in)- Width
94 mm
(3.7 in)- Height
128.3 mm
(5.1 in)
Description
Can be used as vacuum pump,Oil-free, non-lubricated piston and cylinder, and a module with a semipermanent life
Application：
Nebulizers, ink cartridge chargers, suction units,endoscope cleaners, interference wave curers,ozonizers, skin care devices, etc.
Certification：
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009
Product Specifications
Rated Voltage - V - AC 110 or 220
Vacuum - mmHg - 600
Pressure - kgf/cm2 - 2
Open Flow - LPM - 20(60Hz) / 18(50Hz)
Hose Suggestion - mm - Φ 6
