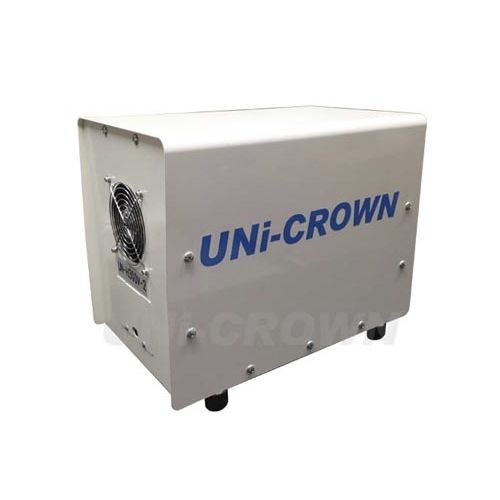

Medical vacuum pump JB-300VHlaboratoryoil-free
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory, medical
- Options
- oil-free
- Flow
140 l/min
(36.98 us gal/min)- Power
950 W
(1.29 hp)- Weight
30 kg
(66.1 lb)- Length
460 mm
(18.1 in)- Width
280 mm
(11 in)- Height
365 mm
(14.4 in)
Description
JB Series has been designed to reduce the problem of noise in laboratories. JB-300V enclosure are the perfect solution to increase comfort in laboratory.
Feature：
Oilless operation, Compact design, High flow rate with low noise level, Back pressure auto release,Motor with thermo protection, Rugged construction, low maintenance
Application：
Instruments & Medical application, Automatic machine assembly, Semi-conductor equipments, Degassing, Extracting, Vacuum Fixing, Pick & Place, Evacuation
Certification：
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009
Product Specifications
Rated Voltage - V - AC 220
Vacuum - mmHg - 740
Open Flow - LPM - 140(60Hz) / 125(50Hz)
