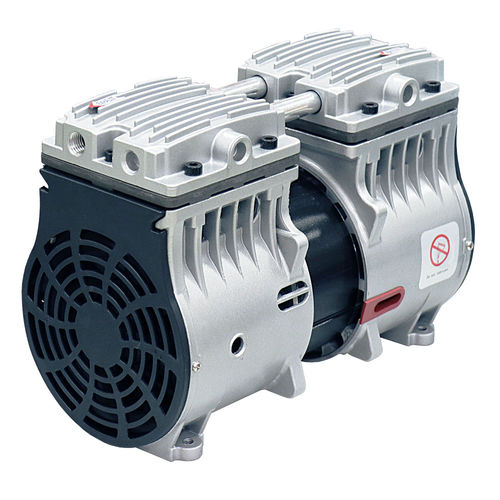

Medical vacuum pump UN-90V

laboratorydentalreciprocating piston

UN-90V oilless vacuum pump is ideal for manufacturing and industrial markets applications, but should be considered for specific medical, laboratory, and Food & Beverage applications as well. Feature： Oil-less operation, Non-lubricated piston and cylinder (Clean air stream, less maintenance), Easily replaced piston seal, Balanced for smooth, low vibration operation, Light weight die-cast aluminum components, Permanently lubricated bearings, Stainless steel valves, Twin fans provide cooling air through and around motor and cylinders, All wetted aluminum parts treated for corrosion protection from moisture, Thermally protected permanent split capacitor AC motors, One Year Warranty Provided Application： Semiconductor automation equipment, Vacuum packaing, spin coater, Labeling machine, Robotic arms. Certification： CE EMC Certification EN 55014-1:2006+A1:2009+A2:2011 EN 55014-2:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 CE LVD Certification EN 60335-1: 2012+A13:2017 EN 60335-2-80: 2003+A1:2004+A2:2009 Product Specifications Rated Voltage - V - AC 110 or 220 Vacuum - mmHg - 680 Installation Size - mm - 203.5 x 89 x M6 I.D. of screw thread - PT　 - 1/4"
