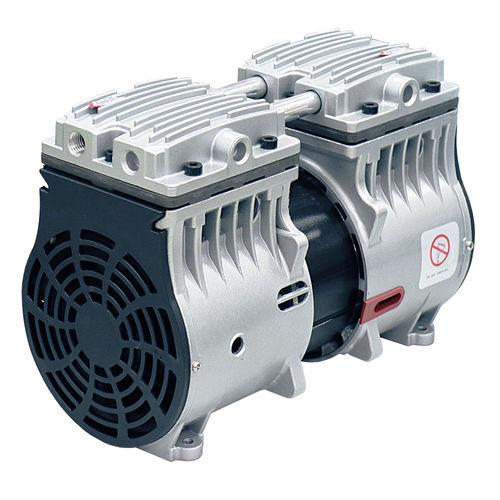

Medical vacuum pump UN-120VHlaboratoryelectronicoil-free
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory, medical
- Technology
- electronic
- Options
- oil-free
- Flow
60 l/min
(15.85 us gal/min)- Power
300 W
(0.41 hp)- Weight
8.6 kg
(19 lb)- Length
250 mm
(9.8 in)- Width
129 mm
(5.1 in)- Height
185 mm
(7.3 in)
Description
UN-120VH oilless vacuum pump is ideal for manufacturing and industrial markets applications, but should be considered for specific medical, laboratory, and Food & Beverage applications as well.
Feature：
RoHS Certification, Oil-less,Non-lubricated cup and cylinder,Long-life cup design, Stainless-steel valves,Thin wall cylinder for good heat transfer
Application：
Electronic & Semiconductor equipment, Spin coater, Diode test machine, Vacuum packing machine, Laser processing machine
Certification：
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009
Product Specifications
Rated Voltage - V - AC 110 or 220
Installation Size - mm - 203.5 x 89 x M6
I.D. of screw thread - - 1/4"PT牙
