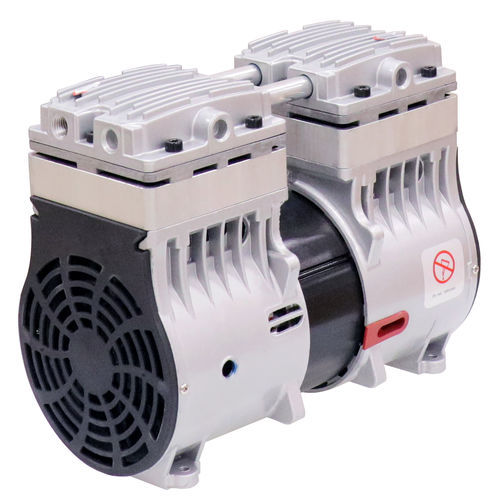

Medical vacuum pump UN-180Voil-free
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Options
- oil-free
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 170 l/min
(44.91 us gal/min)- Power
Min.: 0 W
(0 hp)Max.: 500 W
(0.68 hp)
Description
Feature:
*CE / RoHS Certification, Oil-free, All Wetted Aluminum
*Low noise. low-temperature rise, low vibration
*Oil-less, non-lubricated cup and cylinder
*Parts Treated For Corrosion Protection From Moisture
*One Year Warranty Provided
Application:
*Medical Suction equipment
*Dental equipment
*Semiconductor automation equipment
*Vacuum packing, Labeling machine, Robotic arms.
*Various instruments
Rated Voltage - V - AC 110 or 220
Vacuum - mmHg - 680
Open Flow - LPM - 170(60Hz) / 158(50Hz)
Power Consumption - W - 500
Dimension - mm - 250 x 128 x 203
Installation Size - mm - 203.5 x 89 x M6
I.D. of screw thread - PT - 1/4"
Weight - kg - 9.2
