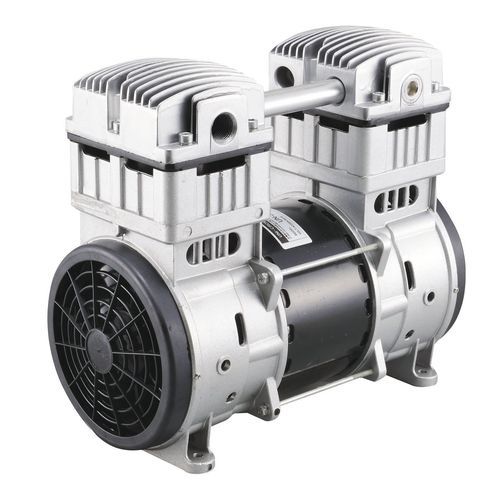

Medical vacuum pump UN-300VHoil-free
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Options
- oil-free
- Flow
140 l/min
(36.98 us gal/min)- Power
950 W
(1.29 hp)- Weight
18 kg
(39.7 lb)- Length
320 mm
(12.6 in)- Width
170 mm
(6.7 in)- Height
290 mm
(11.4 in)
Description
Oilless operation, Compact design,Motor mounted with thermo protection,Rugged construction/low maintenance
Application：
Processing machine, LED test machine, Printing machine
Certification：
CE EMC Certification
EN 55014-1:2017/A11:2020
EN 55014-2:2015
EN IEC 6100-3-2:2019/A1:2021
EN 61000-3-3:2013/A1:2019
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-34:2013
Product Specifications
Rated Voltage - V - AC 220
Vacuum - mmHg - 740
Open Flow - LPM - 140(60Hz) / 125(50Hz)
Installation Size - mm - 243 x 127 x M8
I.D. of screw thread - PT - 1/2"
