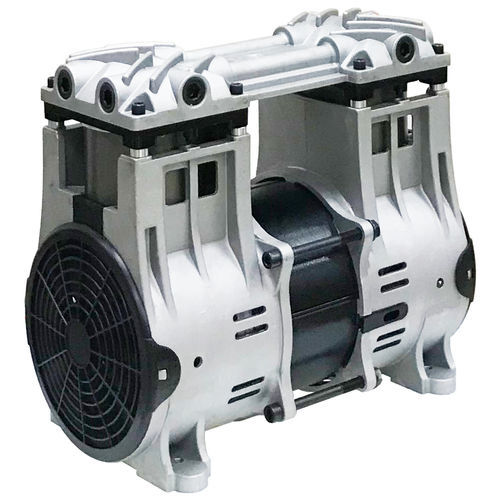

Medical vacuum pump UN-350VHlaboratoryoil-freelubricated
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory, medical
- Options
- oil-free, lubricated
- Flow
180 l/min
(47.55 us gal/min)- Power
1,000 W
(1.36 hp)- Weight
2 kg
(4.4 lb)- Length
325 mm
(12.8 in)- Width
179 mm
(7 in)- Height
290 mm
(11.4 in)
Description
Oilless Vacuum Pump UN-350VH A high pressure unit that can be used on tank systems as well as in laboratories on ‘rough’ vacuum duties.
Feature：
Permanently lubricated bearings, Oil-less, non-lubricated cup and cylinder, Long-life cup design, Thin wall cylinder for good heat transfer, Stainless steel valves, Recoverable thermally protected motor
Application：
Laboratory, Processing machine, LED test machine, Printing machine
Certification：
CE EMC Certification
EN 55014-1:2017/A11:2020
EN 55014-2:2015
EN 61000-3-3:2013/A1:2019
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-34:2013
Product Specifications
Rated Voltage - V - AC 110 or 220
Vacuum - mmHg - 740
Installation Size - mm - 248 x 127 x M8
I.D. of screw thread - PT - 1/2"
